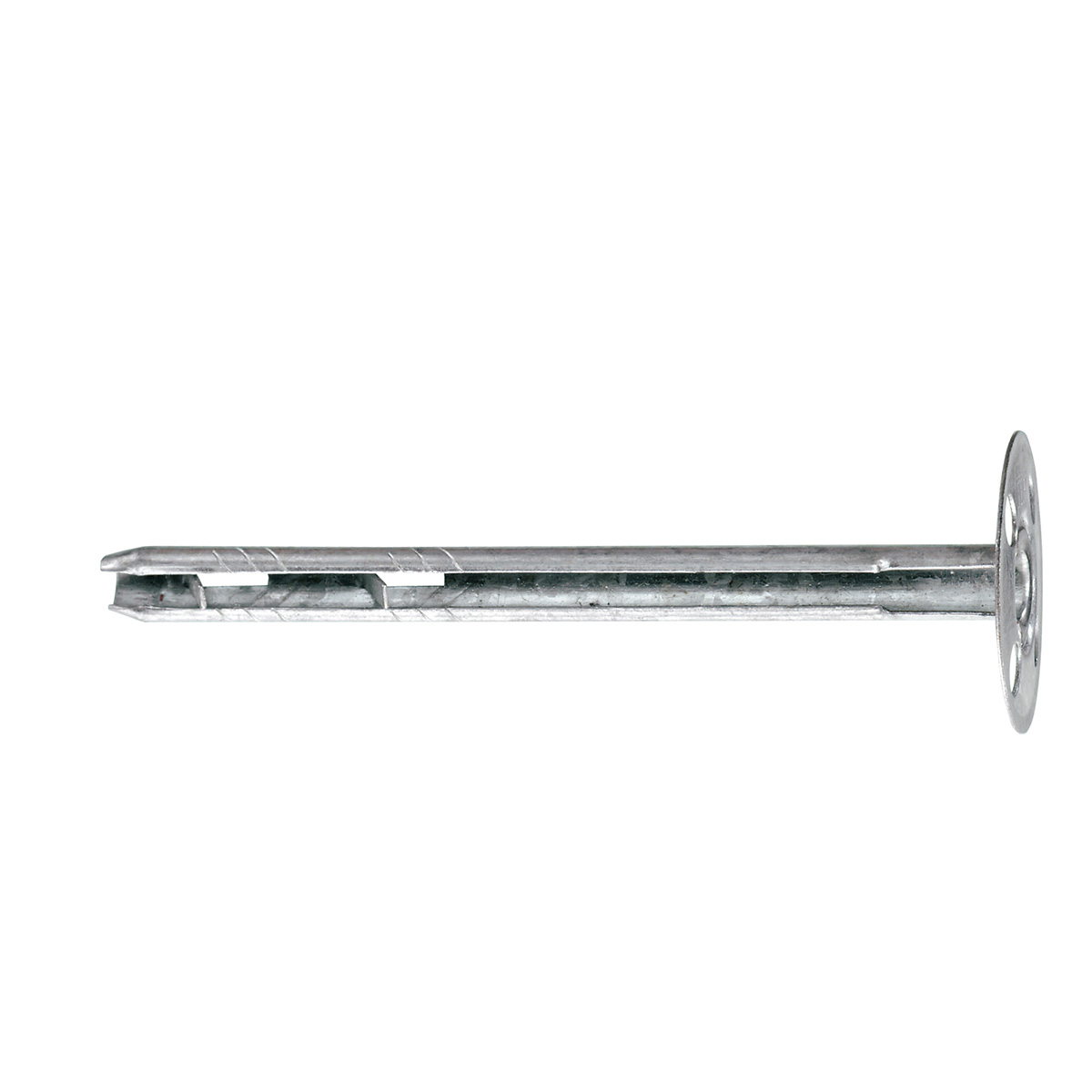

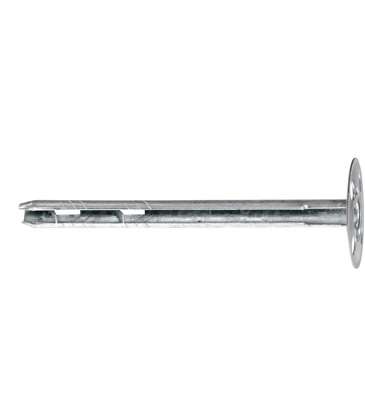

Spit Isomet

An all metal through fix anchor for insulation materials. Quick and easy to install.

Advantages

  • Quick and easy to install, Tapered shank - aids insulation
  • 100% metal anchor - fire resistant (tested by CSTB)
  • Holes in head - provides key for render
  • Large diameter head - to support insulation material

Types of Materials

Concrete, Solid brick, Solid block, Stone

Main Uses

Fixing of insulation when fire resistance is required Internal and external insulation boards.




Isomet - Galvanised

productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
EUROCODEDESCRIPTION Hole Ø TL D.Hole Depth anchor Depth BOX QTY* PRICEQTYBUY NOW
059730ISOMET - 8MM X 80MM 8mm80mm60mm50mm250£68.16
059740ISOMET - 8MM X 110MM 8mm110mm60mm50mm250£72.30
059750ISOMET - 8MM X 140MM 8mm140mm60mm50mm250£76.41
059760ISOMET - 8MM X 170MM 8mm170mm60mm50mm250£127.34
059770ISOMET - 8MM X 200MM 8mm200mm60mm50mm250£133.61
* All prices for box quantities & exclude VAT.

Isomet CC - Zinc Plated 5µm

productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
EUROCODEDESCRIPTION Hole Ø TL D.Hole Depth anchor Depth BOX QTY* PRICEQTYBUY NOW
059800CC12-60/11012mm113mm60mm50mm100£77.82
059810CC12-80/13012mm133mm60mm50mm100£91.95
059820CC12-100/15012mm153mm60mm50mm100£97.45
* All prices for box quantities & exclude VAT.

Isomet SS- Stainless Steel A2-304

productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
productList_ajaxProduct.xslt
EUROCODEDESCRIPTION Hole Ø TL D.Hole Depth anchor Depth BOX QTY* PRICEQTYBUY NOW
059700SS8-308mm80mm60mm50mm250£134.33
059710SS8-608mm110mm60mm50mm250£152.08
059720SS8-908mm140mm60mm50mm250£161.85
* All prices for box quantities & exclude VAT.
